All around your shape

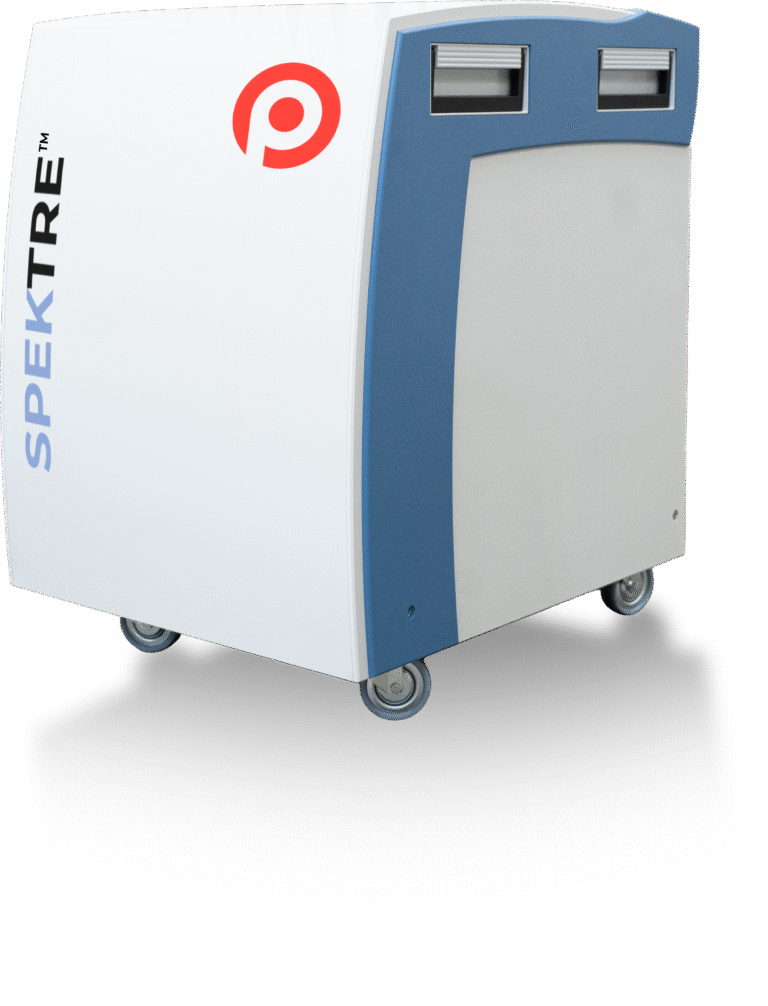

SPEKTRE is a solution developed by Pet Solutions S.p.A. to ensure continuity and reliability in production processes, reducing machine downtime and increasing operational efficiency. Based on the patented principle of Ion-Molecule Reaction (IMR) mass spectrometry, it offers fast, selective measurements with a wide dynamic range and very low detection limits.
The system is designed for continuous and precise monitoring of all production stages, from raw material to finished product, ensuring consistent quality and complete traceability. It can be used both in the field (for dehumidification air, plastic granules, and preforms) and in the laboratory (with autosampler).
SPEKTRE also enables accurate control of contaminants, detecting specific VOCs and residual moisture, ensuring compliance with quality standards. Finally, thanks to data sharing with field devices, it enables self-adaptive algorithms that optimize and make production smarter.
All-in-One Detection System
All-in-one device: no need of different devices to detect different contaminants
Comprehensive Analysis of Multiple Substances
One analysis able to detect all the substances e.g.: Benzene, AA, Limonene, PVC Monopolymer, Water Content, etc.
Real-Time Data Acquisition
No need of special gas utilities for analysis
No Carrier Gas Required
Funziona senza gas di servizio dedicati, riducendo costi e complessità operative.
Flexible Offline Sample Analysis
Offline analysis of Granules, Flakes and Preforms
Online Gas Monitoring for Batch-to-Batch Control
Online gas analysis: batch-to-batch control
| Technical Data | IMR-MS | Technical Data | IMR-MS |
|---|---|---|---|
| Mass range | 7 - 519 amu | Ambient temperature | 20°C - 35°C |
| Resolution | < 1 amu | Humidity max. | 80% (non-condensing) |
| Analysis time | >= 1 msec / amu | Gas consumption2 | 30 - 3000 ml/min |
| Measuring range 1 | 10⁵ | Gas inlet temperature | 50°C - 190°C adjustable |
| Response time 1 | T90 < 20 msec | Gas inlet pressure2 | 0.75 - 2 bar(a) |
| Lower detection limit 1 | 0.4 ppt | Power | 230V/50Hz or 115V/60Hz |
| Concentration drift | < ± 5% over 24 h | Dimension (WxHxD) | 534 x 743 x 639 mm |
| Reproducibility | < ± 3% | Weight | 87 kg |
| Accuracy | < ± 2% |
1 A seconda dei componenti misurati, della configurazione del sistema e delle impostazioni.
2 A seconda del tipo di sistema di ingresso gas.
Automatic Pressure Regulation
Automatic pressure regolation ranging from 0.75 to 2 bar(a)
Integrated Matrix Correction and Self-Calibration
Integrated matrix correction, calculation, and auto-calibration
Gas Inlet with Controlled Temperature
Temperature-controlled gas inlet

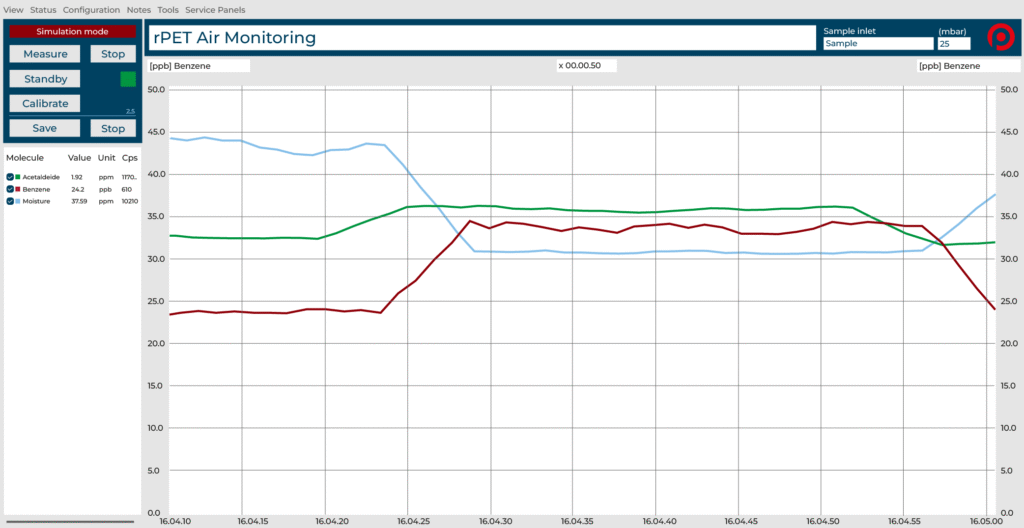

Intuitive and Easy-to-Use Software
User-friendly software package
Fast, Selective, and Interference-Free Measurements
Fast, selective, and interference-free measurements thanks to IMR technology
